    Accurate Die Casting Aluminum Rotational Molds CNC Processed For Plastic Products

    Ask Lasest Price
    Brand Name : J&C
    Model Number : customized sizes
    Price : Negotiated
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 80 SETS PER MONTH
    Delivery Time : 35 DAYS
    • Product Details
    • Company Profile

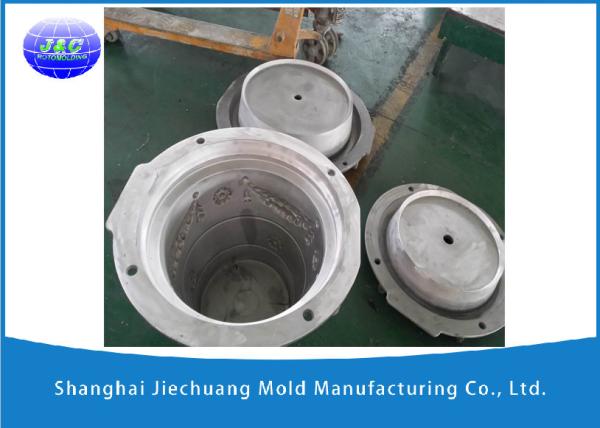

    Accurate Die Casting Aluminum Rotational Molds CNC Processed For Plastic Products

    Accurate Die Casting Aluminum Rotational Molds CNC Processed For Plastic Products


    Features:


    1 . We are a professional factory of producing Die Casting Aluminum Rotational Molds and rotational moulding products etc..

    2 . Clients' drawings and samples are highly appreciated.

    3 . We have a strong R&D center design system and strict inspection processes in order to ensure the quality.


    Product Description

    Poduct Name
    CNC processed die casting alum rotational mold, customized rotational mold
    Material
    Aluminum A356
    Surface treatment
    Polish, Sandblasting, Telfon coating
    Wall thickness
    8-10mm
    Mould life
    Over 10000 shots
    Mould Process
    Design, foam, casting, CNC process, Polish, Frame, Test, Packing
    Platic Material
    LLDPE, MDPE, HDPE, CROSS LINKED PE
    Our service
    help you design with our professional experience for rotational mold

    Accurate Die Casting Aluminum Rotational Molds CNC Processed For Plastic ProductsAccurate Die Casting Aluminum Rotational Molds CNC Processed For Plastic Products
    Accurate Die Casting Aluminum Rotational Molds CNC Processed For Plastic ProductsAccurate Die Casting Aluminum Rotational Molds CNC Processed For Plastic Products

    1. About Rotational Moulding:

    Rotational moulding, known also as rotomolding or rotocasting, is a process for manufacturing hollow plastic products. For certain types of liquid vinyls, the term slush molding is also used. Rotational molding has particular advantages in terms of relatively low levels of residual stresses and inexpensive molds. Rotational molding also has few competitors for the production of large (> 2 m3) hollow objects in one piece. Rotational molding is best known for the manufacture of tanks but it can also be used to make complex medical products, toys, leisure craft, and highly aesthetic point-of-sale products.
    2. The process begins with specially developed and uniquely applied resins. They can include plastisols, polyethylene, polycarbonate, acetate butyrate, polyamide, elastomers, polyurethane, polypropylene, ethylene vinyl acetate and fluorocarbons. Some of the most advanced work is being done with cross-linked polyethylene and even nylon.
    3. The principle of rotational molding of plastics is simple. Basically the process consists of introducing a known amount of plastic in powder, granular, or viscous liquid form into a hollow, shell-like mold.The mold is rotated and/ or rocked about two principal axes at relatively low speeds as it is heated so that the plastic enclosed in the mold adheres to, and forms a monolithic layer against, the mold surface. The mold rotation continues during the cooling phase so that the plastic retains its desired shape as it solidifies. When the plastic is sufficiently rigid, the cooling and mold rotation is stopped to allow the removal of the plastic product from the mold. At this stage, the cyclic process may be repeated. The basic steps of (a) mold charging, (b) mold heating, (c) mold cooling, and (d) part ejection.


    2. Roto Advantage

    Design flexibility allowing complex geometry
    · Cost saving - Projects of 50 to 30,000 are ideal
    · Molds cost less then other molding methods
    · Parts offer strength and durability
    · Stress free parts
    · Short lead times on production
    · Consistent wall thickness
    · Limited materials waste
    · Small to very large hollow parts can be produced
    · Part surfaces can have various textures


    Accurate Die Casting Aluminum Rotational Molds CNC Processed For Plastic Products

    Accurate Die Casting Aluminum Rotational Molds CNC Processed For Plastic Products

    Accurate Die Casting Aluminum Rotational Molds CNC Processed For Plastic Products


    4. RFQ


    Q: Are you trading company or manufacturer ?

    A: We are factory.

    Q: How long is your delivery time?

    A: Generally it is 35 days after confirming drawing and receive advanced payment.

    Q: Do you provide samples once open mould?

    A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

    Q: What is your terms of payment ?

    A: 50% advanced payment, the balance before shippment.
